LETH17

Category： LETH Series

· Max stroke: 1250 mm

· Max horizontal load: 120 Kg

· Max vertical load: 50 Kg

· Max rated thrust：2563 N

· Max speed: 2000 mm/s

Request a Quote DOWNLOAD

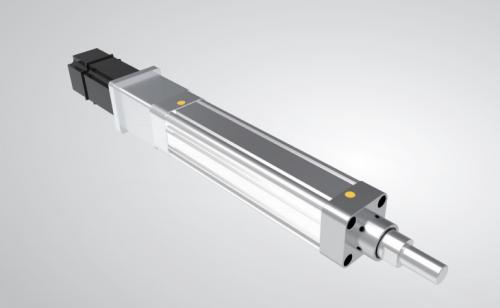

Product Lineup: Ball Screw Linear Actuators LETH17 series

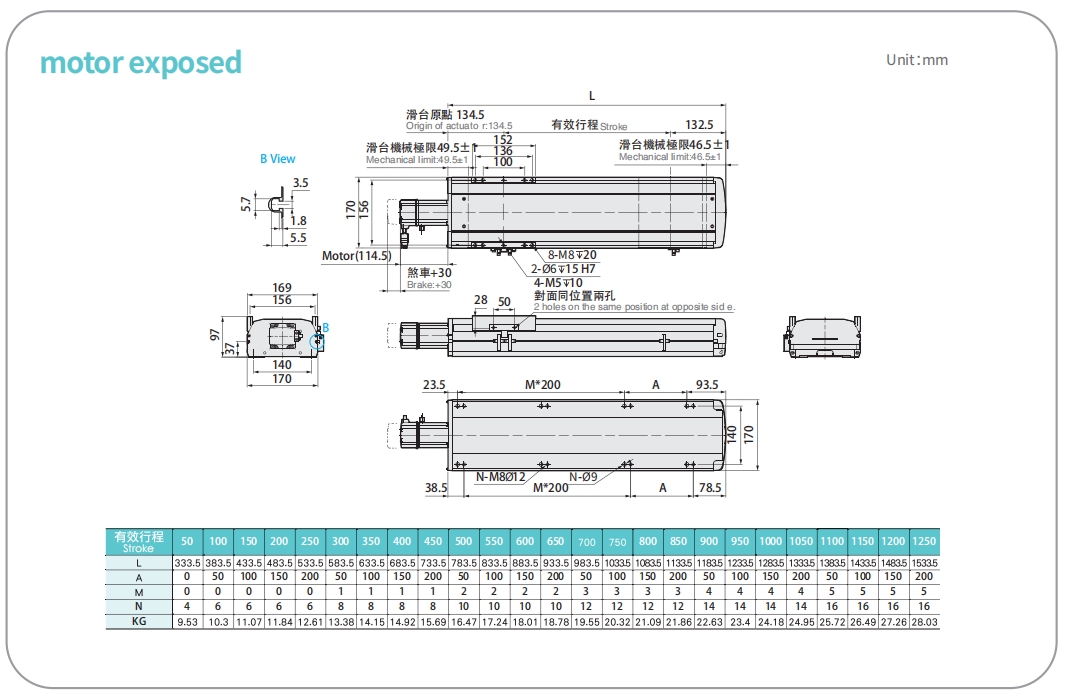

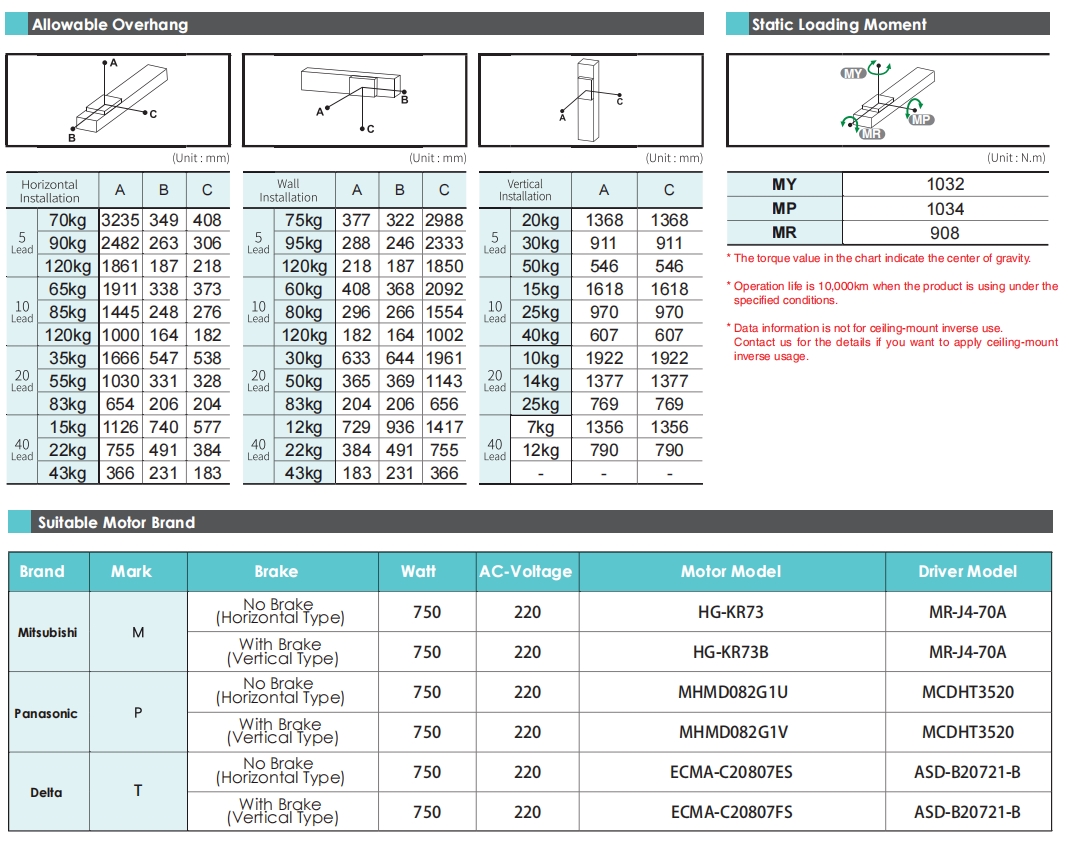

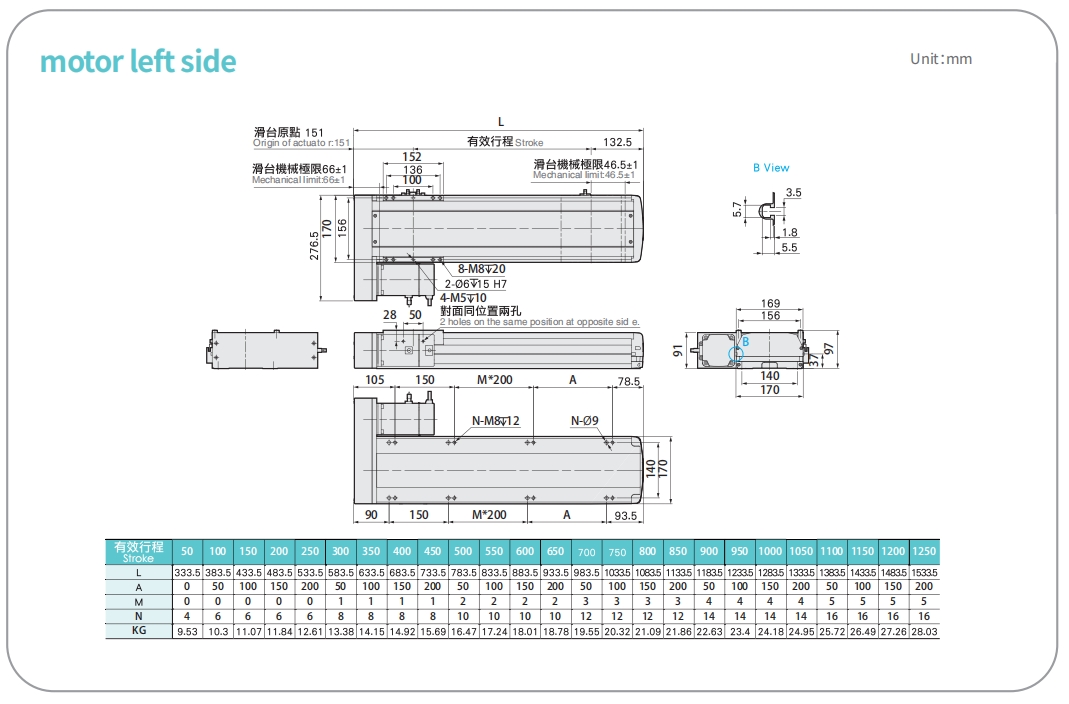

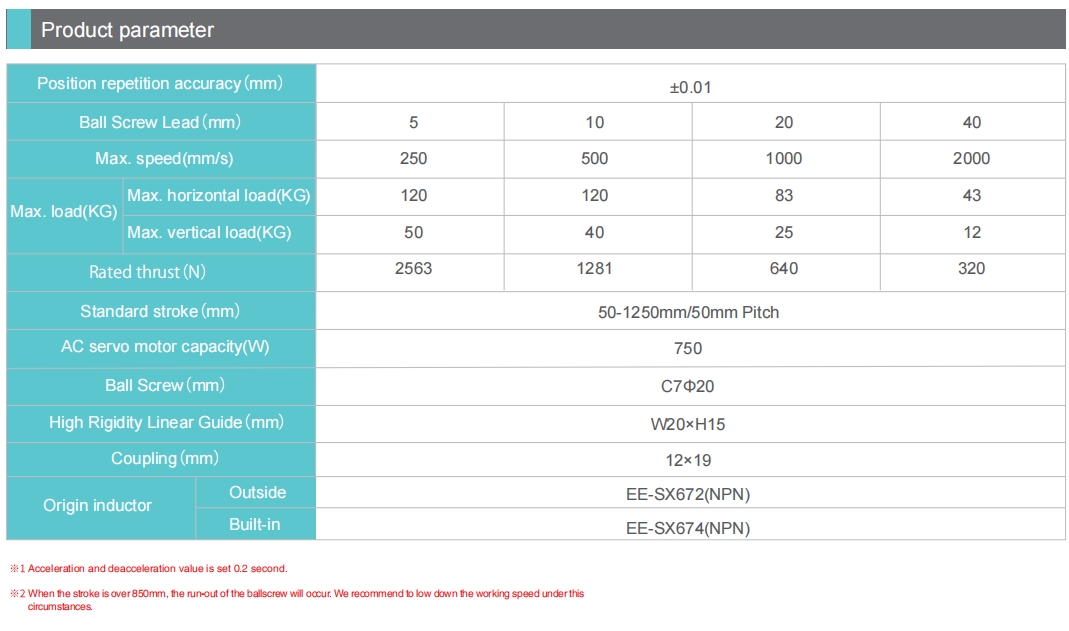

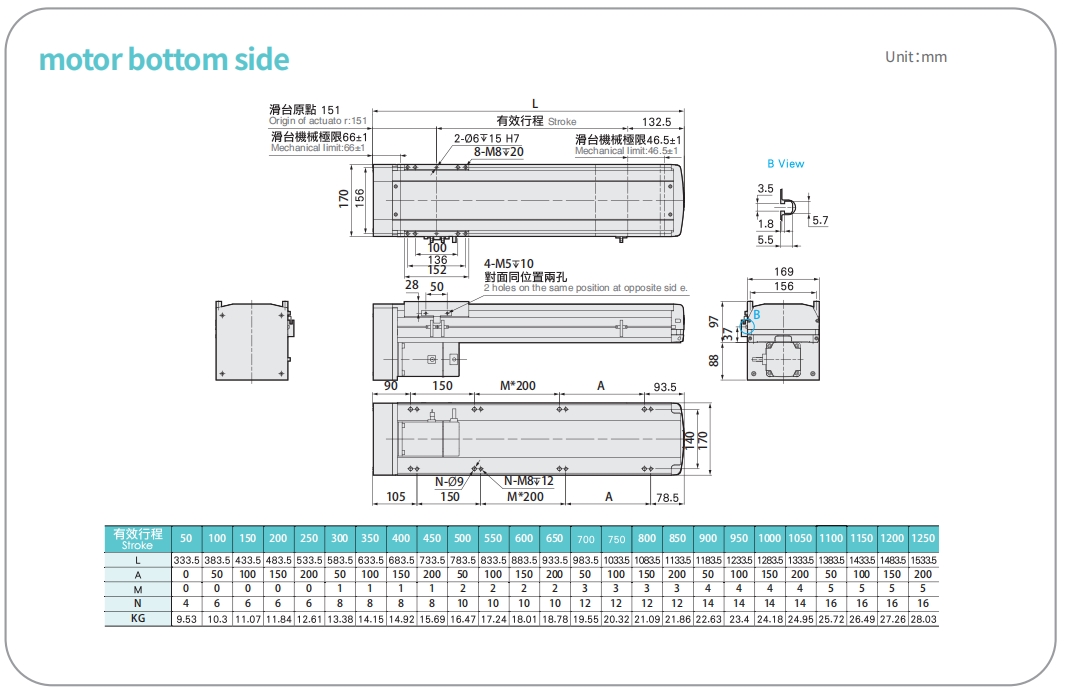

LETH17 linear actuator naming method diagram showing model identification details LETH17 linear actuator technical parameters including 1250mm stroke, 120kg load, and 2563N thrust iLETH17 linear actuator allowable overhang diagram for proper load distribution LETH17 linear actuator with exposed motor configuration for versatile setups LETH17 linear actuator with motor mounted on the bottom side for compact designs motor right of LETH17, <a href=https://www.involinkct.com/Ball-Screw-linear-Actuators.html target='_blank'>Ball Screw<a href=https://www.involinkct.com/products.html target='_blank'> Linear Actuators</a></a>, Linear Motion
