KK40D

Category： KK Type

· Max stroke: 200 mm

· Max speed: 270 mm/s

· Repeatability: ± 0.003 mm

Request a Quote DOWNLOAD

Product Lineup: Ball Screw Linear Actuators KK40D series

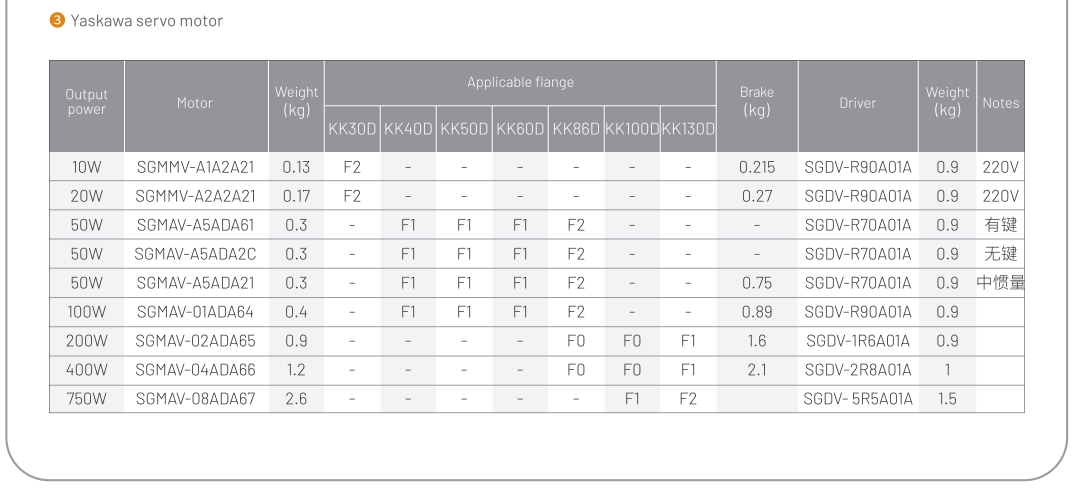

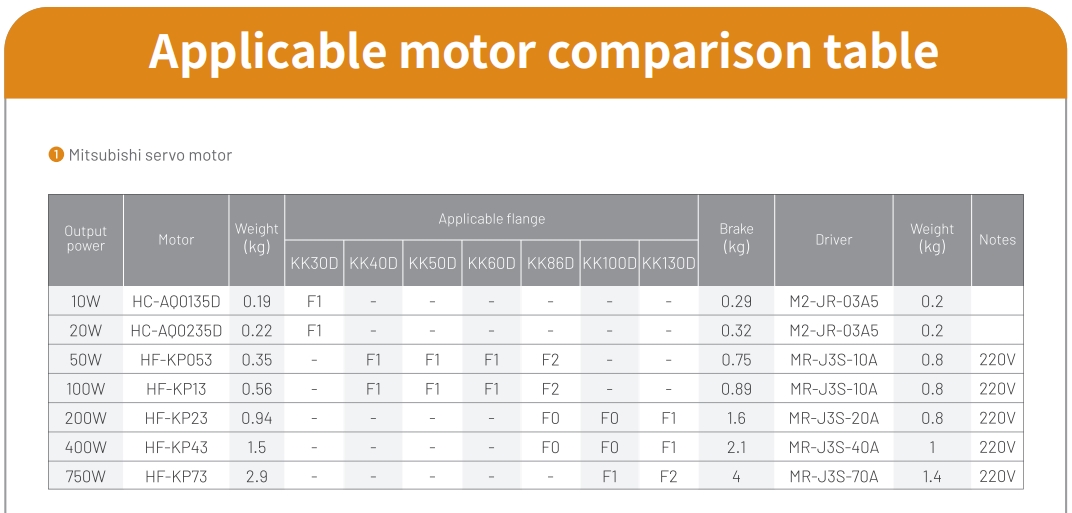

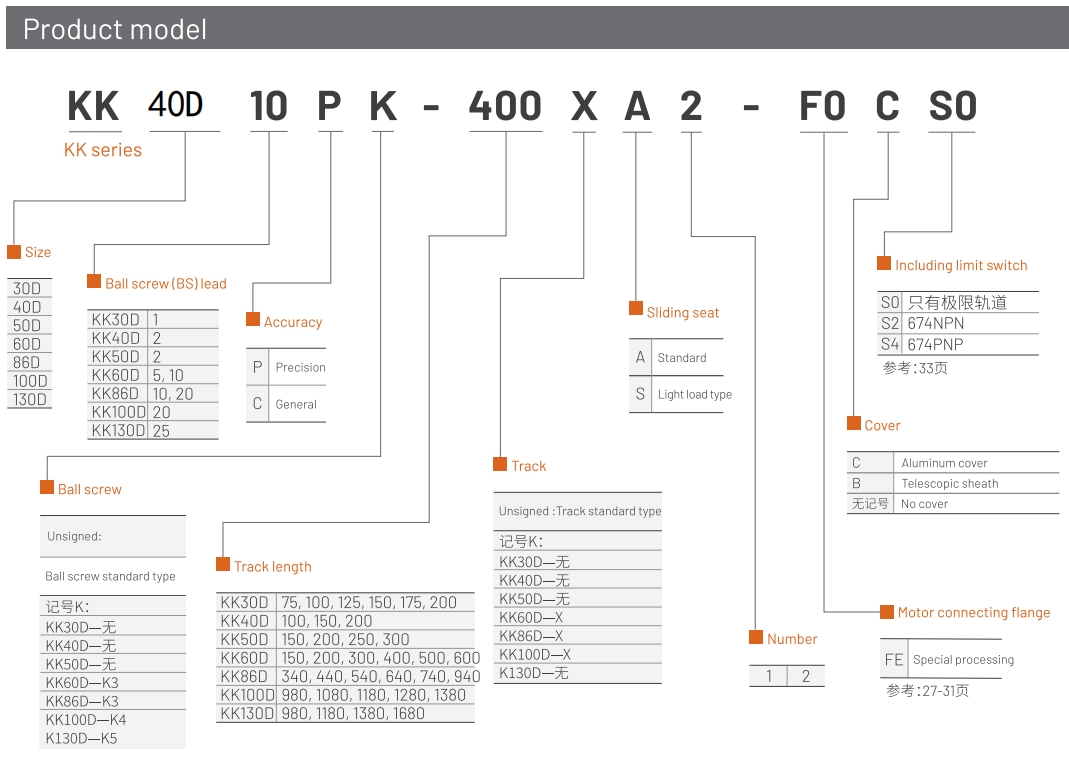

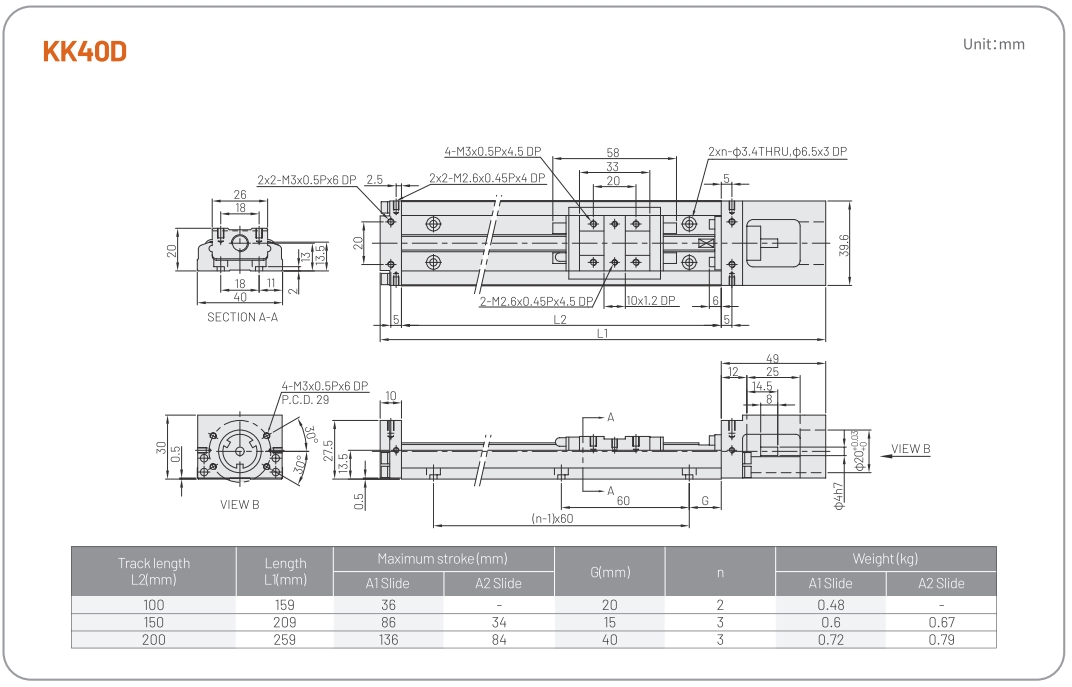

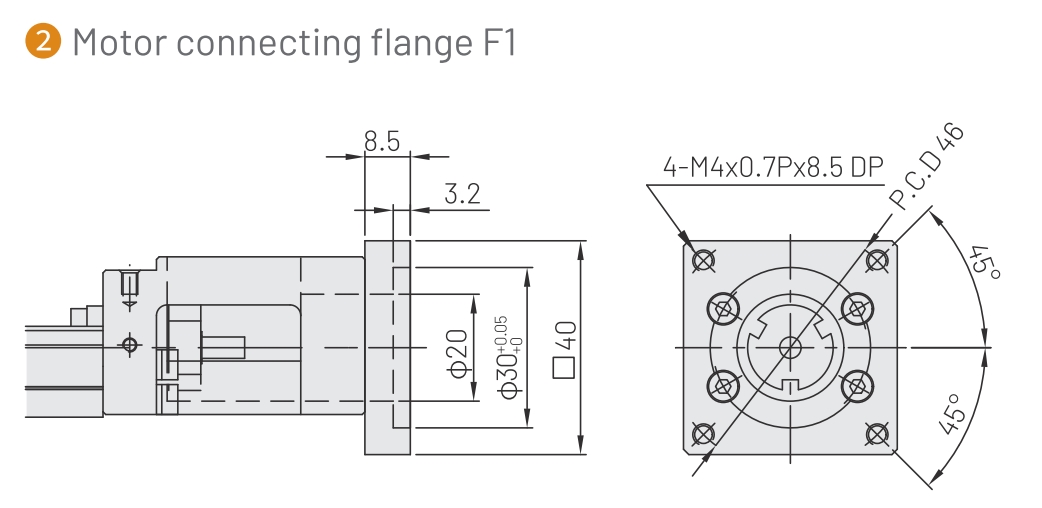

KK40D linear actuator naming method diagram showing precise model identification KK40D linear actuator load specification chart for motion analysis KK40D linear actuator repeatability of ±0.003mm for precision motion control KK40D linear actuator maximum speed of 270mm/s for high-speed applications KK40D linear actuator without cover for exposed motor setups KK40D linear actuator with cover for protected industrial environments KK40D linear actuator compatible with multiple motor brands for flexible configurations KK40D linear actuator connecting flange option 1 for secure mounting

Tags: KK40D Linear Actuators Linear Motion Compact Design Medium-Load Linear Actuator High-Speed Motion
