LECH17

Category： LECH Series(Cleanroom)

· Max stroke: 1250 mm

· Max horizontal load: 120 Kg

· Max vertical load: 50 Kg

· Max rated thrust：2563 N

· Max speed: 2000 mm/s

Request a Quote DOWNLOAD

Product Lineup: Ball Screw Linear Actuators LECH17 (Cleanroom) series

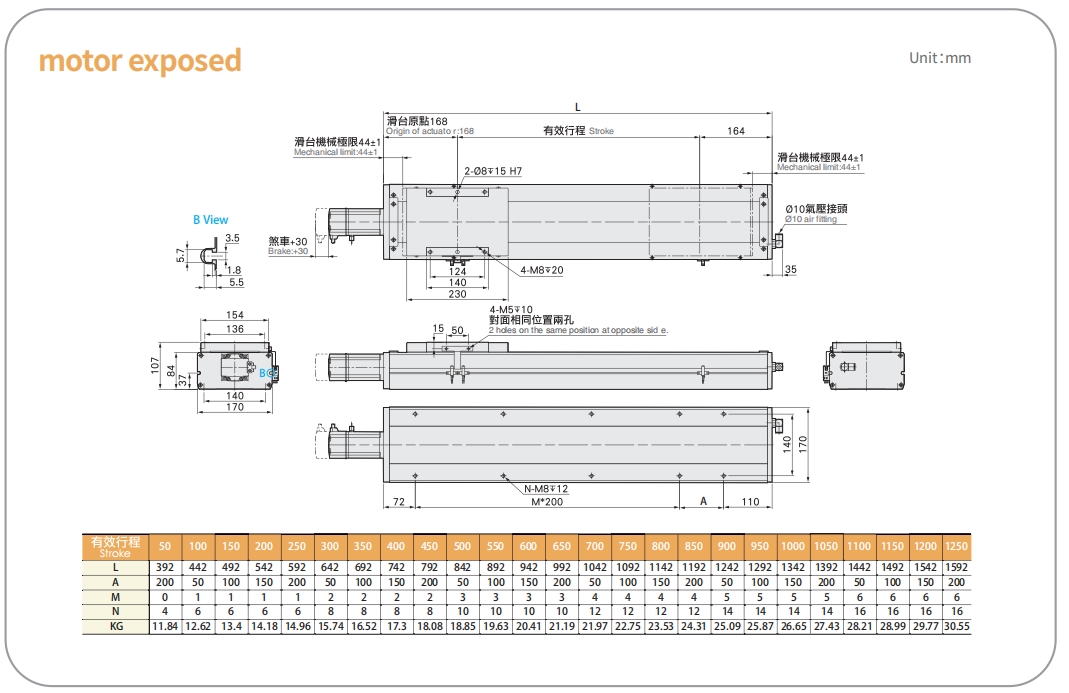

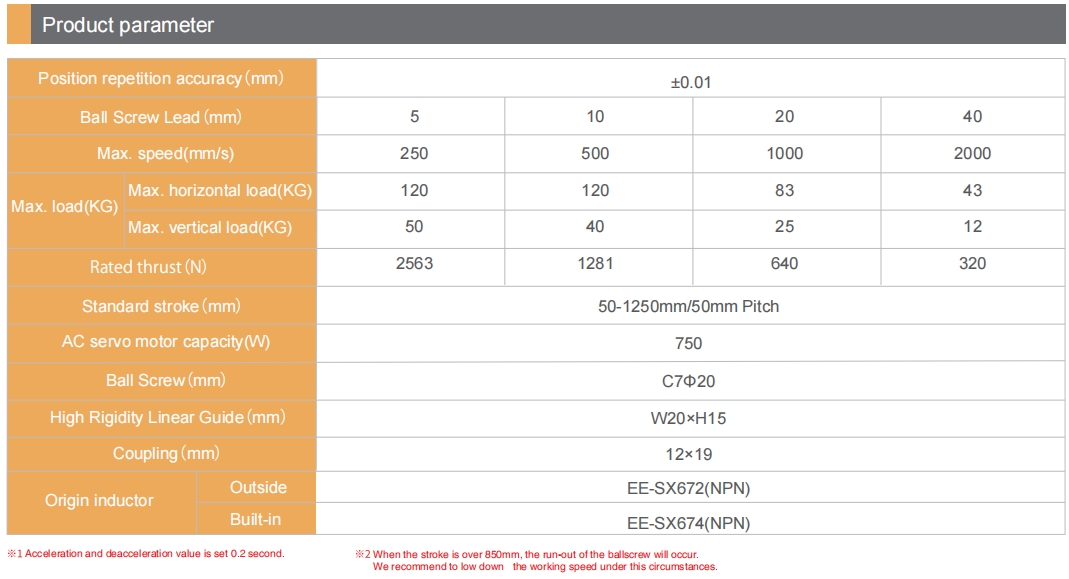

LECH17 linear actuator naming method diagram showing cleanroom model identification details LECH17 linear actuator technical parameters including 1250mm stroke, 120kg load, and 2563N thrust for cleanroom use LECH17 linear actuator allowable overhang diagram for proper load balancing in cleanroom setups LECH17 cleanroom linear actuator with exposed motor configuration for flexible designs
