LECH22

Category： LECH Series(Cleanroom)

· Max stroke: 1500 mm

· Max horizontal load: 150 Kg

· Max vertical load: 55 Kg

· Max rated thrust：2563 N

· Max speed: 2000 mm/s

Request a Quote DOWNLOAD

Product Lineup: Ball Screw Linear Actuators LECH22 (Cleanroom) series

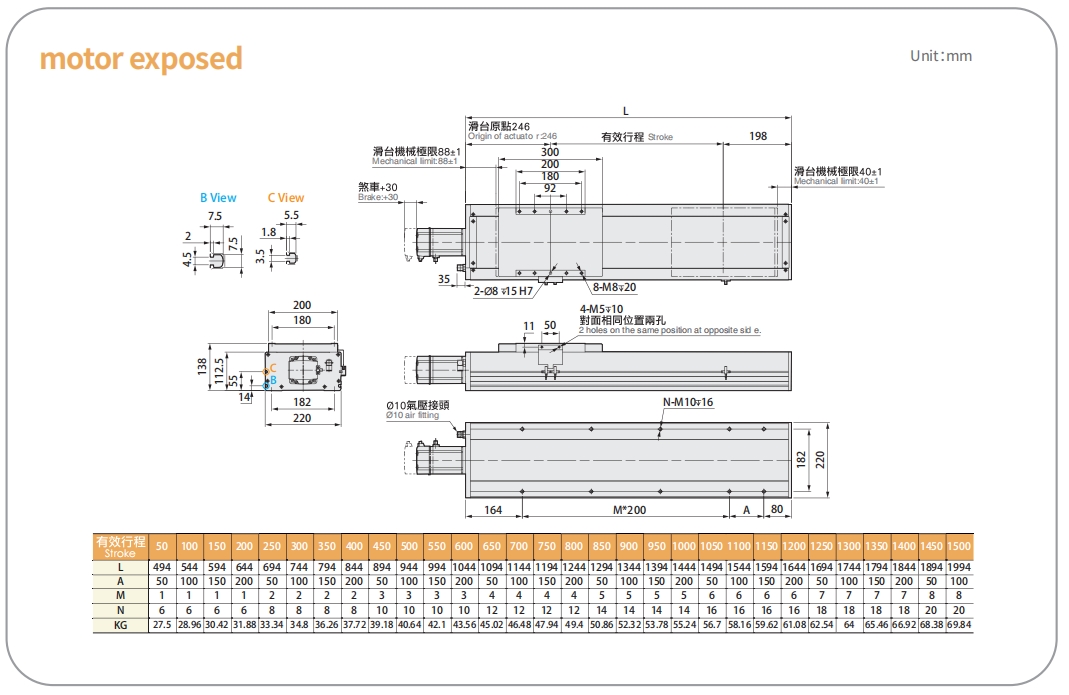

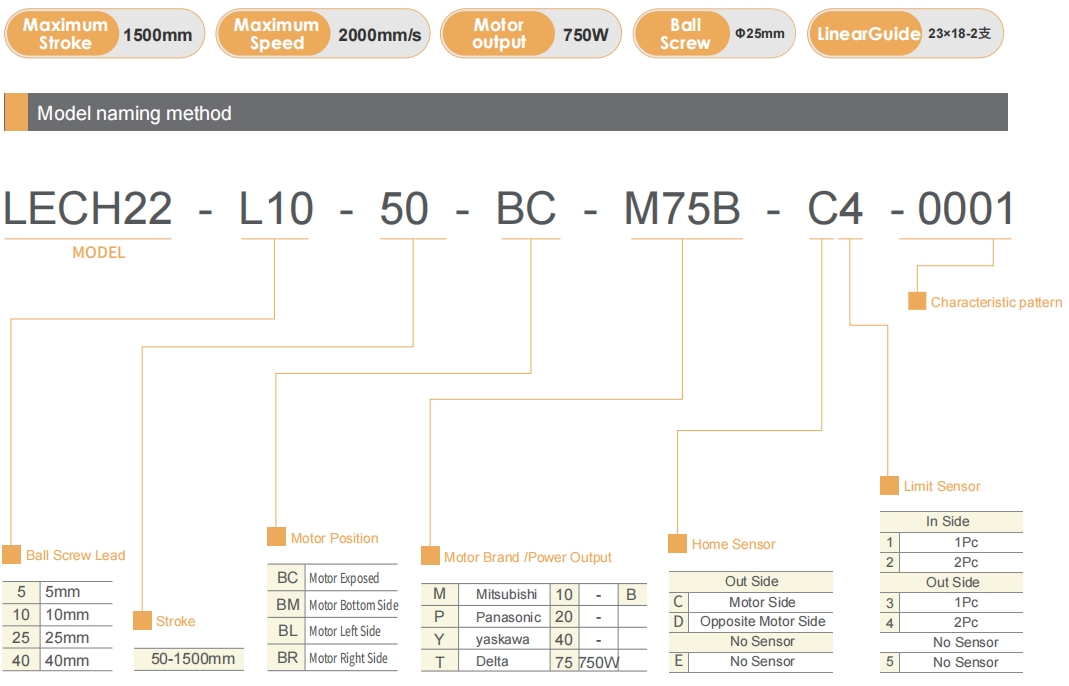

LECH22 linear actuator naming method diagram showing cleanroom model identification LECH22 linear actuator technical parameters including 1500mm stroke, 150kg horizontal load, and 2563N thrust for contamination-sensitive applications LECH22 linear actuator allowable overhang diagram for balanced load and cleanroom setups LECH22 cleanroom linear actuator with exposed motor configuration for industrial designs
