Home PRODUCTS Belt Type Linear Actuators EGK Series EGK80

EGK80

Category： EGK Series

· Max payload: 20 Kg

· Max stroke: 5000 mm

· Max speed: 4500 mm/s

· Width: 84mm

· Repeatability: ± 0.08 mm

Request a Quote DOWNLOAD

Product Lineup: Belt Type Linear Actuators EGK80 series

EGK80 linear actuator naming method diagram for model identification details

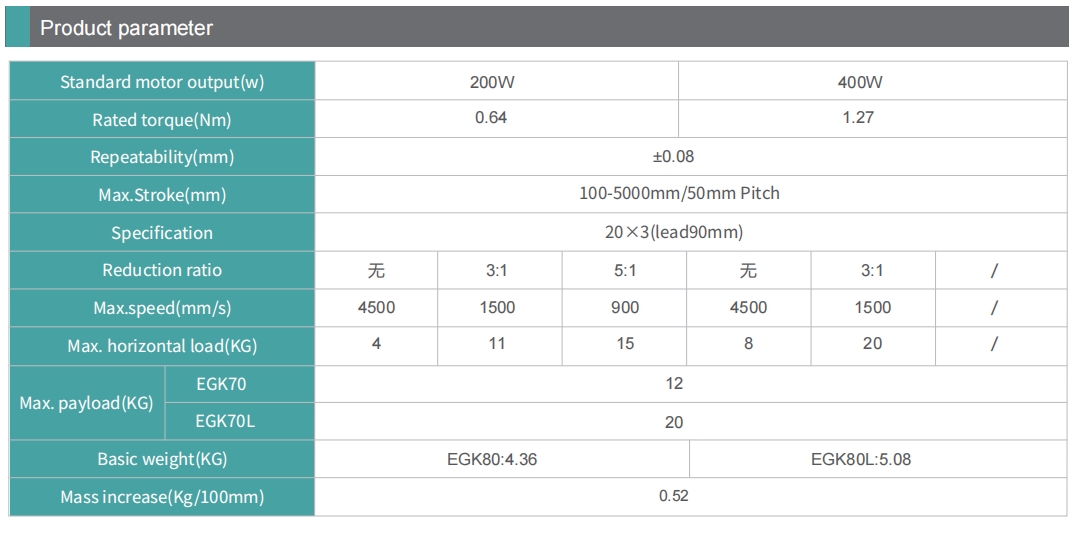

EGK80 linear actuator parameters including 5000mm stroke, 20kg payload, and 4500mm/s speed

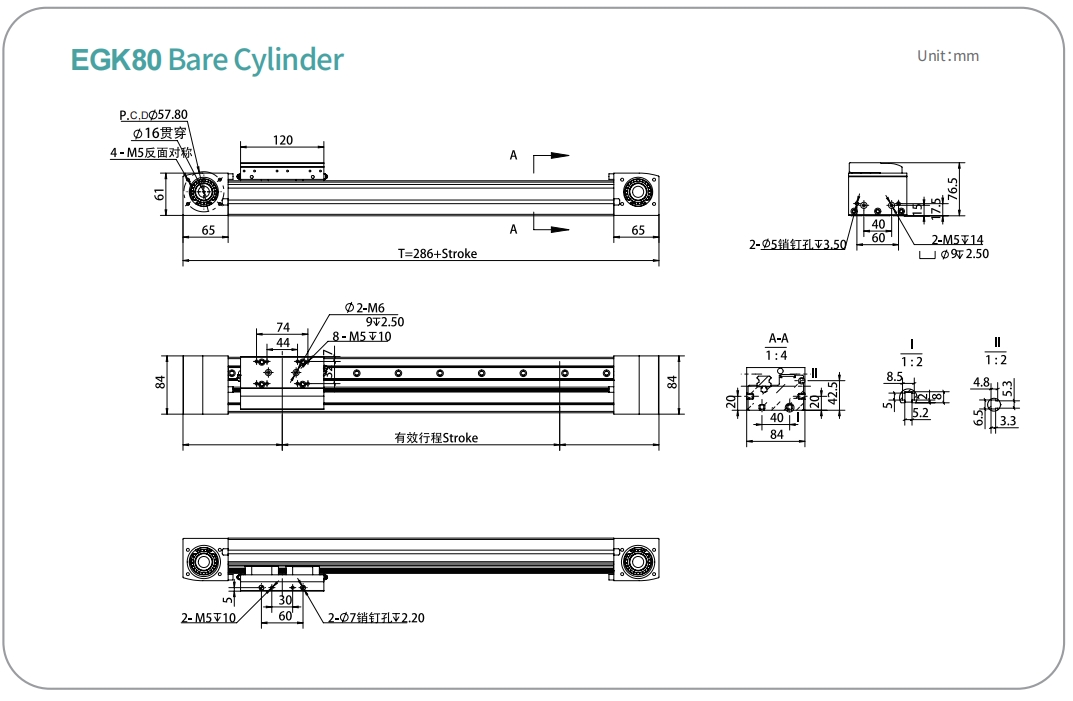

EGK80 belt type linear actuator with bare cylinder configuration for compact spaces

bare cylinder of EGK80L, <a href=https://www.involinkct.com/Belt-Type-Linear-Actuators.html target='_blank'>Belt Type<a href=https://www.involinkct.com/products.html target='_blank'> Linear Actuators</a></a>

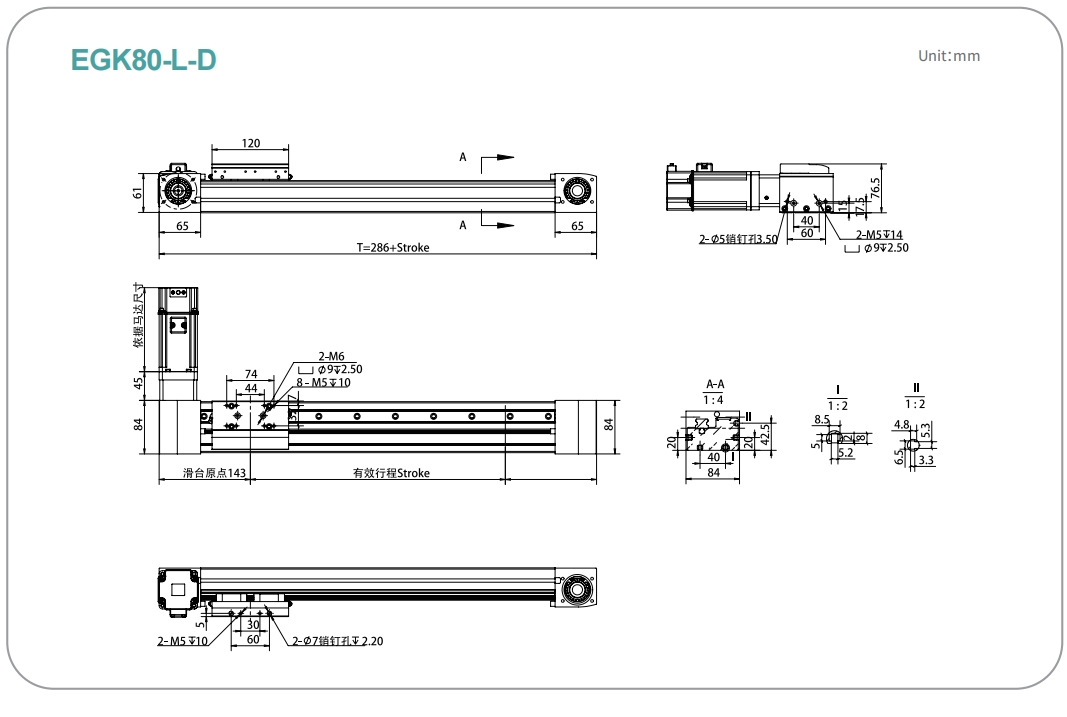

EGK80 belt type linear actuator with motor mounted directly on the left side for efficient setups

EGK80 belt type linear actuator with motor mounted directly on the right side for versatile motion tasks

Tags: EGK80 Belt Type Linear Actuators Linear Motion Compact Design Smooth Motion Medium-Load Belt Actuator
