LE63

  • Category: LE Series
  • · Rated thrust: 2700 N

    · Max stroke: 1200 mm

    · Max speed: 1250 mm/s

    · Max payload: 700 Kg

    · Repeatability: ± 0.02 mm

  • Request a Quote   DOWNLOAD

Product Lineup: Electric Cylinder – Rod Type LE63 series

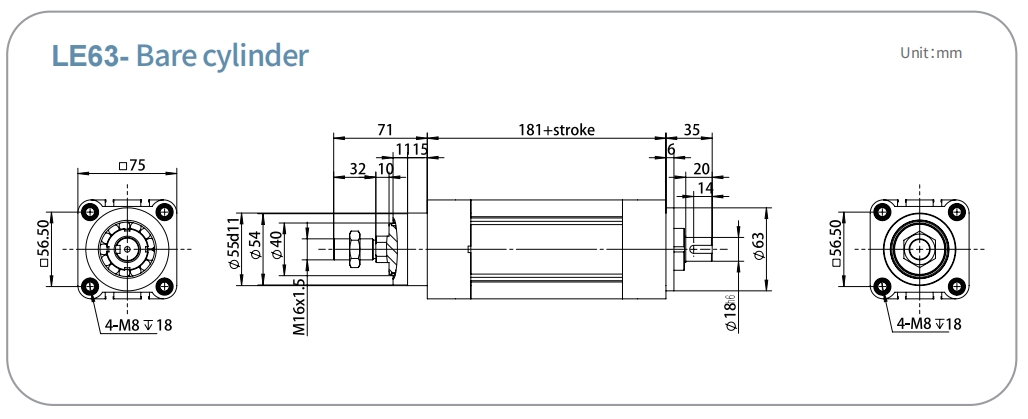

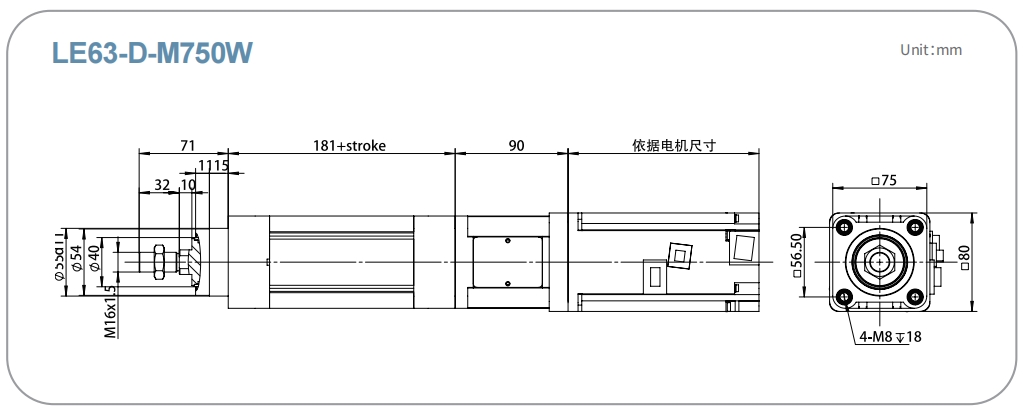

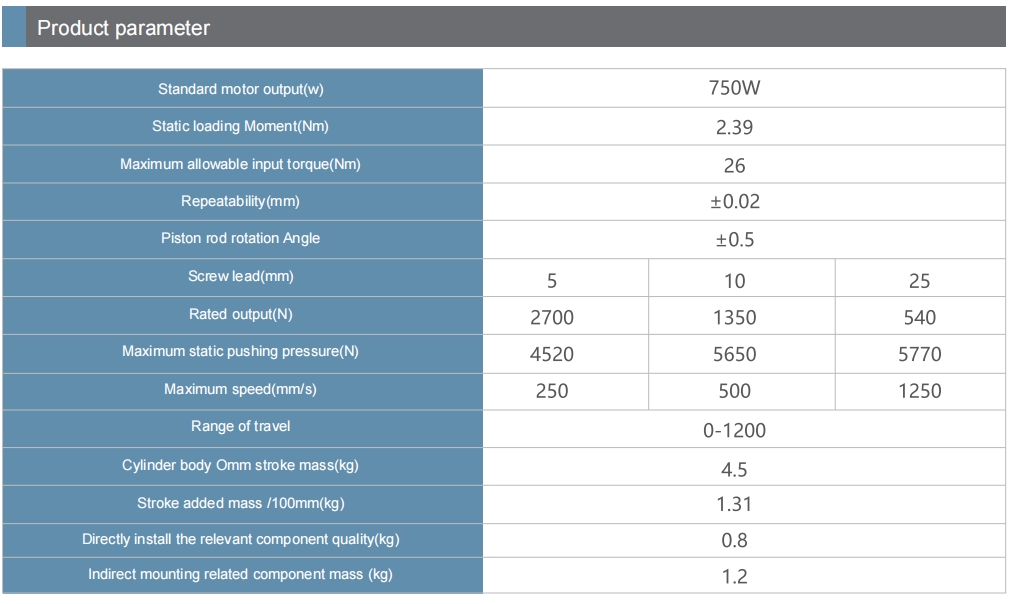

LE63 <a href=https://www.involinkct.com/Electric-Cylinder-Rod-Type.html target='_blank'>Electric Cylinder</a> naming method diagram for heavy-duty systemsLE63 electric cylinder parameters including 1200mm stroke, 2700N thrust, and 700kg payloadbare cylinder, LE63, Electric Cylinders, Rod type, Linear Motion,<a href=https://www.involinkct.com/products.html target='_blank'> Linear Actuators</a> LE63-D-750W, electric cylinder with motor directly mounted for heavy-duty applicationsLE63-P-750W, electric cylinder with motor undirectly mounted for flexible motion setups
