LETH17M(Long stroke)

Category： LETH Series

· Max stroke: 2200 mm

· Max horizontal load: 120 Kg

· Max vertical load: 40 Kg

· Max rated thrust：2563 N

· Max speed: 1280 mm/s

Request a Quote DOWNLOAD

Product Lineup: Ball Screw Linear Actuators LETH17M(Long stroke) series

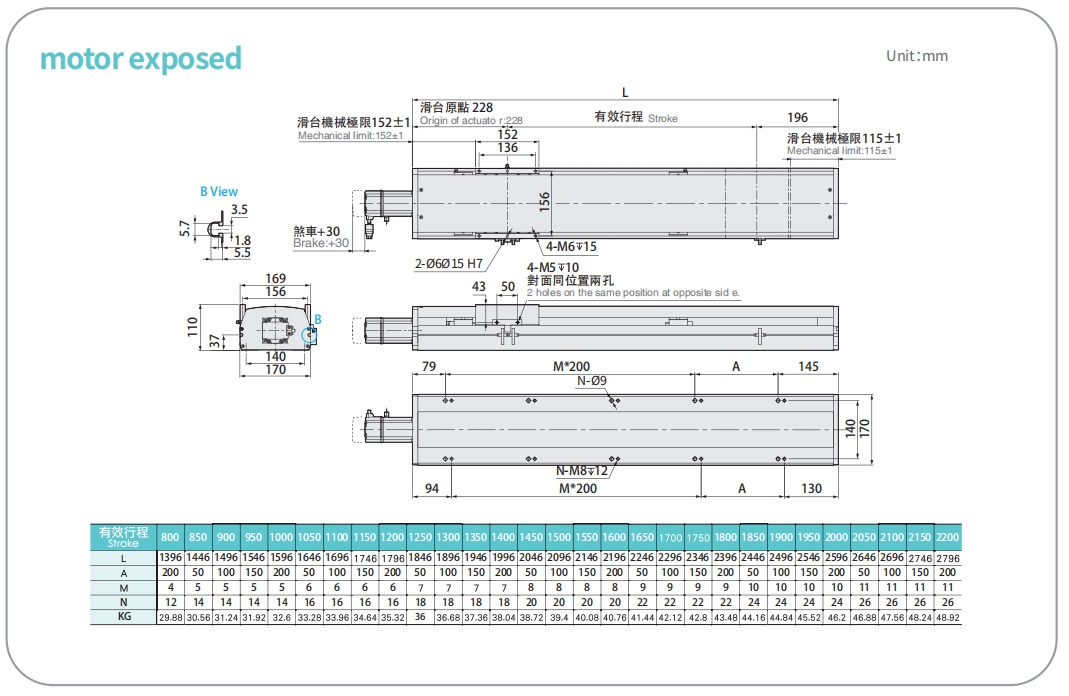

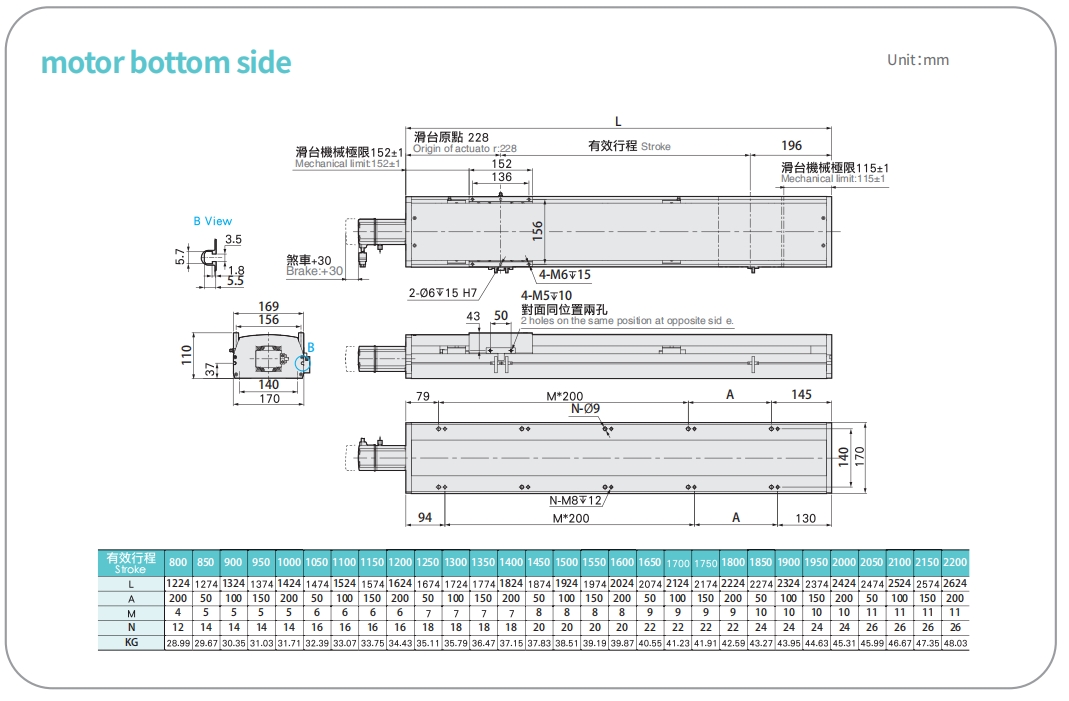

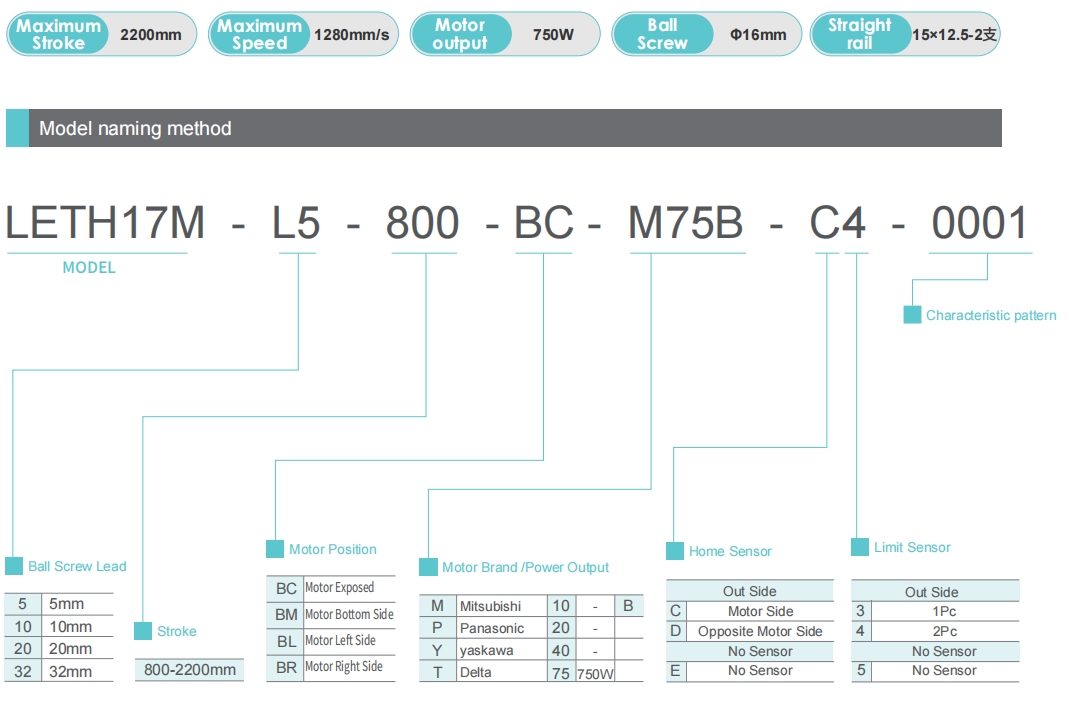

LETH17M long stroke linear actuator naming method diagram LETH17M linear actuator technical parameters including 2200mm stroke, 120kg load, and 2563N thrust LETH17M linear actuator allowable overhang diagram for long stroke setups LETH17M linear actuator with exposed motor configuration for space-saving designs LETH17M linear actuator with motor mounted on the bottom side for extended motion setups motor right of LETH17M, <a href=https://www.involinkct.com/Ball-Screw-linear-Actuators.html target='_blank'>Ball Screw<a href=https://www.involinkct.com/products.html target='_blank'> Linear Actuators</a></a>, Linear Motion, Long Stroke
